An English Omega Owners Manual for the 1525 Quartz Marine Chronometer Movement


This is quite a small manual ( about 96 x 130 mm ). The scans are WAY bigger than the foldable card to aid legibility.
Click on any of the page scan for a larger (approx 120 KB) version.

This movement is not actually used in a wrist or pocket watch. It is a real ships clock. As shown here.



The scans for this catalogue were sent to me by TZ poster CR
MANY THANKS CR !

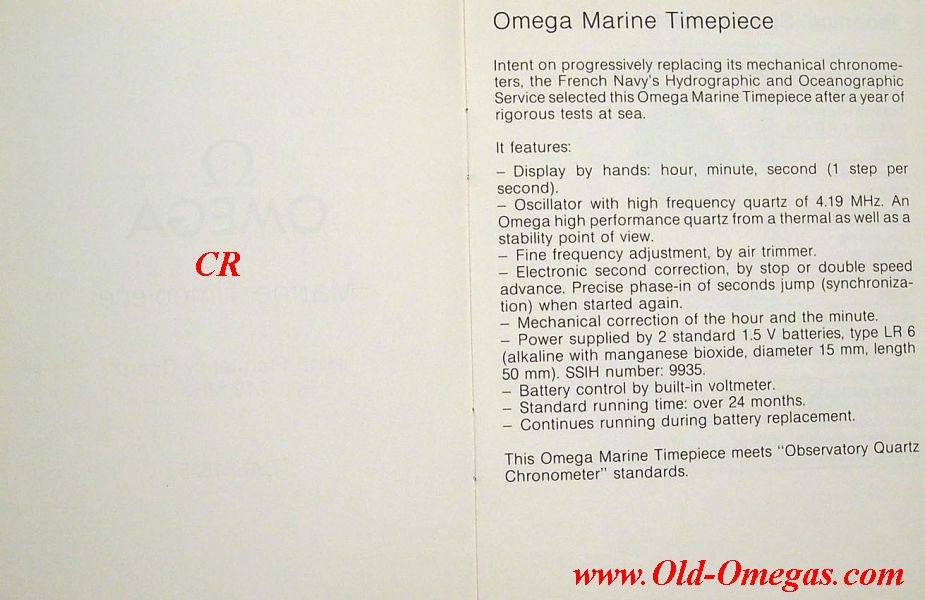

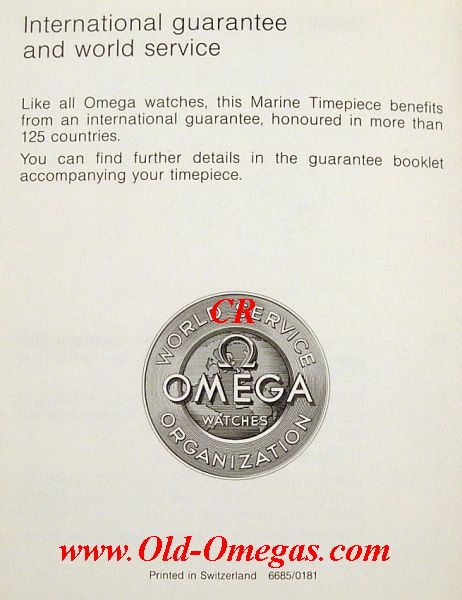

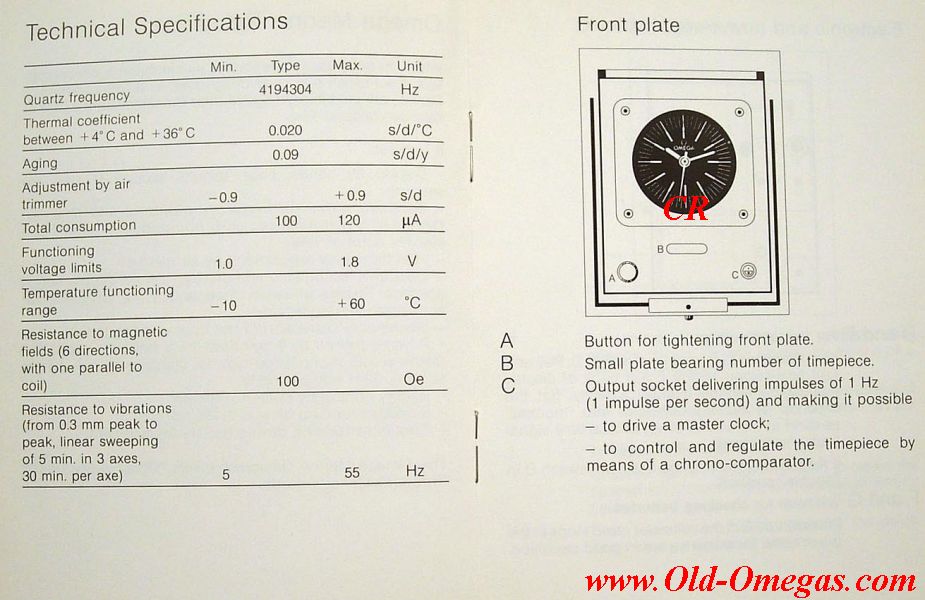

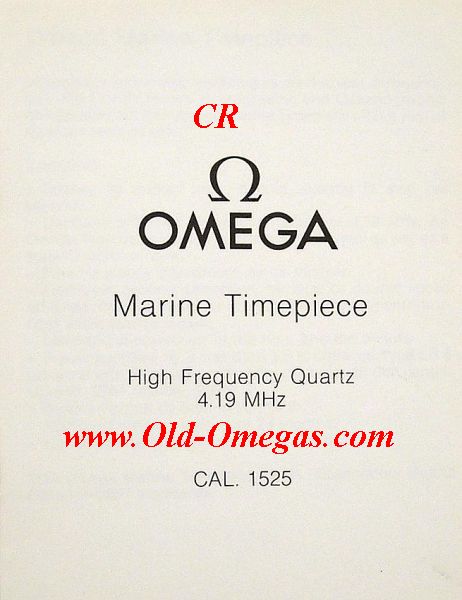

click here for a blow up

click here for a blow up

click here for a blow up

click here for a blow up

click here for a blow up














This page was written by Steve Waddington & last updated on 21 May 2006



I would like to thank CR once again for sharing these scans.
